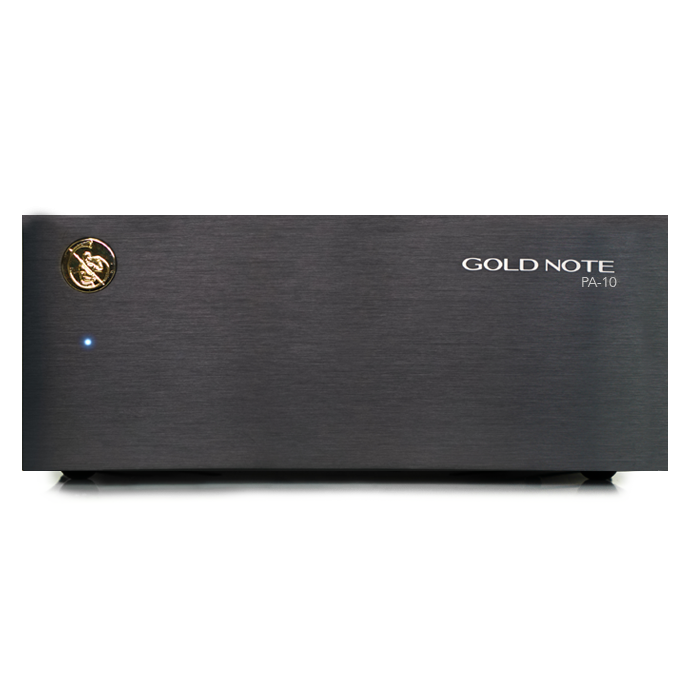

PA-10 Power Amplifier

COMPACT SIZE FULL POWER AMPLIFIER

The PA-10 is the new power amplifier of the Gold Note Series 10 that can play either in Stereo or Mono (bridged) mode. Characterised by the greatest built quality and an impressive variety of functions, the PA-10 is an incredibly versatile power amplifier suitable for any modern High-End audio system. The aesthetic of the chassis is derived from the Series 10 products integrating the PA-10 seamlessly into a coherent concept inspired by the world- famous Italian style and Gold Note modular design.

The power amplifier is composed of a high-quality chassis made from heavy aluminum panels and accurately selected audio components. The idea behind the PA-10 was to design a power amplifier compact in size but capable of astounding power capable of driving any kind of loudspeakers. The new great proprietary technology developed for the PA-10 allows the amplifier to act like a Class A amplifier doubling its power while lowering the speaker impedance. It features a 75Watt @ 8Ω, 150Watt @ 4Ω and 300Watt @ 2Ω in stereo mode, and an amazing 300Watt @ 8Ω, 600Watt @ 4Ω in mono mode.

The PA-10 distinguishes itself with its great versatility, applying a lot of innovations Gold Note is now well known for. Starting from the adjustable Damping Factor, it allows a perfect pairing to any kind of speakers, from the most difficult to high-sensitivity and mini monitor, always providing the best matching.

The Bridge-Tied-Load technology (Mono mode) makes the PA-10 a super high-power amplifier able to virtually drive any speaker on the market. The XLR stereo output enables the PA-10 to be configured in series for convenient high quality multi-room solutions, made easy by the automatic On/ Stand-by mode based on the audio signal received.

The PA-10 comes with both RCA and XLR inputs. It optionally offers the possibility to be simultaneously connected to two different sources like the Gold Note PH- 1000 phono stage with volume control and the DS-10 4-in-1 DAC.

More user friendliness is given with the in-house In/Out GN Link technology which allows putting the amplifier in master-slave- mode with other units presenting the same feature.

MAIN FEATURES

• POWER OUTPUT:  75/150W @ 8/4Ω per ch. in stereo to 600W @ 4Ω per ch. in mono (BTL)
• FREQUENCY RESPONSE:  10Hz-30kHz at +/-1dB
• TOTAL HARMONIC DISTORTION (THD):  0,05%
• DAMPING FACTOR:  Selectable HIGH/LOW

INPUTS AND OUTPUTS

• AUDIO INPUTS
  • 1x RCA Stereo unbalanced
  • 1x XLR Stereo balanced
• INPUT SENSITIVITY:  1,4V RMS on RCA and XLR
• INPUT IMPEDANCE:  13KΩ RCA/XLR
• AUDIO OUTPUTS
  • Speaker terminals:  Gold plated binding posts

POWER

• POWER CONSUMPTION:  <1W in standby; <10W no signal; 150W at a 1/4 of nominal power, 1400W max
• POWER SUPPLY:  100-240V 50/60Hz
• FUSE:  6,3A T

DIMENSIONS AND WEIGHT

• DIMENSIONS:  200mm W | 80mm H | 260mm D | 290mm W | 180mm H | 390mm D – boxed
• WEIGHT:  Kg. 4 (8.8 lbs) – net, Kg. 5 – boxed (11 lbs)
