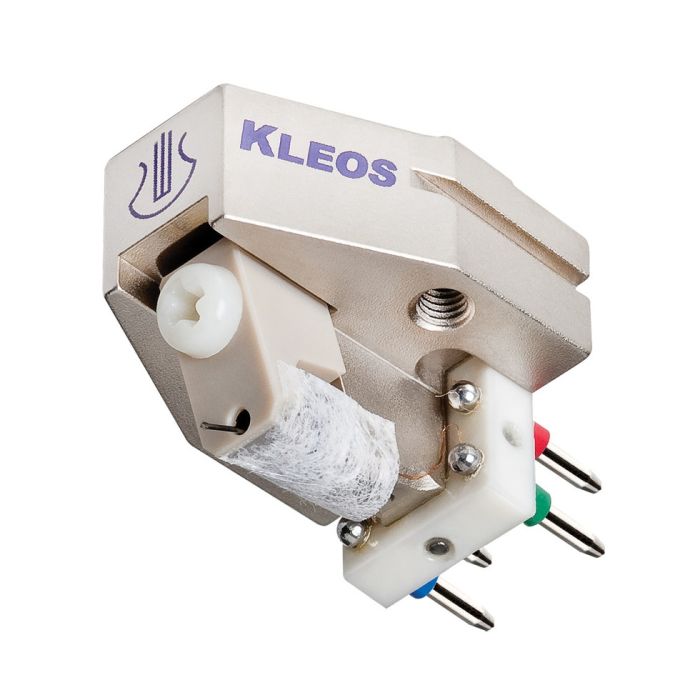

Kleos Mono Cartridge

by Lyra

MAP Pricing (Guaranteed lowest advertised price)

Frequent Flyer Program does not apply.

Starting from :

$3,995.00
$3,995.00

* Required Fields

Price with selection:

$3,995.00

The Kleos SL is a special, built-to-order, version of Kleos for expert users with very high-gain, extra low noise phono stages, or alternatively a step-up transformer designed for phono cartridges of 2 – 3 ohms or less.

Most users (and phono stages) will benefit from the regular Kleos with much higher output and considerably more energy; resulting in a much better signal-to-noise ratio. If you are in doubt about which version of Kleos that will work best in your system, please go with the regular Kleos.

The Kleos SL may provide extra pure and pristine sound from an audio system that is optimized for a low-impedance, low-output cartridge. However, this may be accompanied with a lesser level of energy and power.

Lyra nevertheless has decided to offer SL models, as built-to-order at a 10% surcharge, for those who are confident that they can extract the benefits from such a low-output MC phono cartridge.

Specifications for Lyra Kleos Mono

Designer: Jonathan Carr

Builder: Yoshinori Mishima (final build, testing), Akiko Ishiyama (preliminary build)

Type: Medium weight, medium compliance, low-impedance moving coil cartridge

Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (3um x 70um), slot-mounted

Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body

Coils: 2-layer deep, 6N high-purity copper, square-shaped chemically-purified high-purity iron former, 5.4ohm self-impedance, 9.0uH inductance

Output voltage: [email protected]/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)

Frequency range: 10Hz ~ 50kHz

Compliance: Approx. 12×10-6cm/dyne at 100Hz

Vertical tracking angle: 20 degrees

Cartridge body: One-piece machining from solid 7075 alloy billet, with reduced-surface higher-pressure headshell contact area, partially non-parallel shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws

Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard

Distance from mounting holes to stylus tip: 9.5mm

Cartridge weight (without stylus cover): 8.8g

Recommended tracking force: 1.65 ~ 1.75g (1.72g recommended)

Recommended load directly into MC phono input: 95.3ohm ~ 816ohm (determine by listening, or follow detailed guidelines in user manual)

Recommended load via step-up transformer: 5 ~ 15ohm (step-up transformer’s output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)

Recommended tonearms: High-quality pivoted or linear tangential) tonearms with rigid bearing(s), adjustable anti-skating force, preferably VTA

The above information is from the manufacturer.
Have a question? Connect with our Audio Gurus at 800-328-9973 or 215-862-4870 or Send email or use Contact form. You can also take advantage of our system matching expertise with a Free System Consultation.
