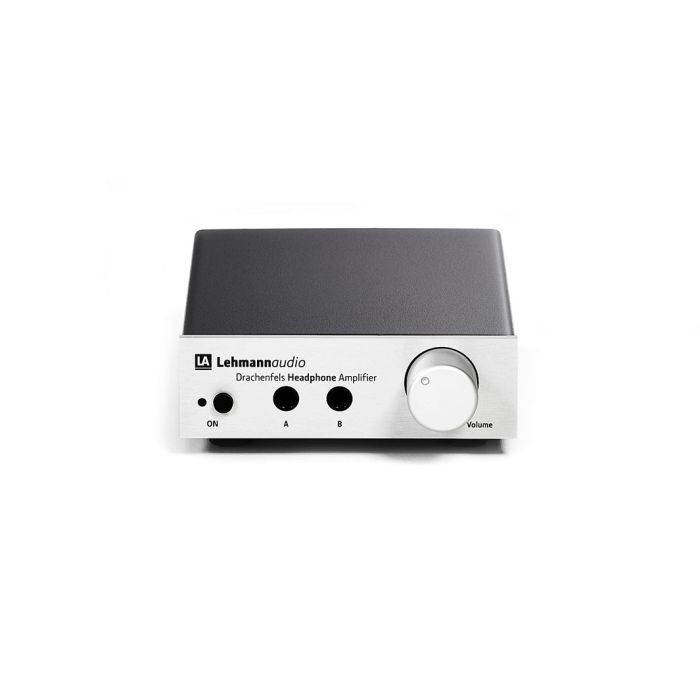

Drachenfels USB
A new way of hearing digital music: the USB version of the Drachenfels plays back your music files from PC, Mac or even mobile phone in audiophile quality. The Drachenfels USB automatically recognizes an incoming USB audio data stream and needs no input selector switch. Whether from a digital or analogue source – our compact local hero lets you experience your favorite music with a wealth of details in a fatigue-free, thrilling manner. Never again will you regard your headphones as a makeshift solution.
Analogue? Digital? Drachenfels!
The modular design with cutting-edge components opens long-term perspectives for quality-minded music lovers who have demands on sustainability. No matter if streaming via WLAN or ethernet, linking Bluetooth sources or conventional digital players – owing to modular pc boards, which are available at short notice, the Drachenfels gives the right answer to all of these requirements. Even with the advent of new digital standards, a simple swapping of both module and rear panel will enable an upgrade!
The Drachenfels offers 12dB of practice-oriented gain which, due to the smooth running ALPS Blue Velvet potentiometer with excellent synchronism and the ultra low-noise circuit, dispenses with the need for a gain switch. The power switch located on the front reduces the power consumption in standby mode to an eco-friendly value of less than 1 W. Moreover, its space-saving dimensions offer you plenty of placing options for the Drachenfels. Use it as a headphone amplifier or preamp and discover the happiness of intense music listening.
Input impedance: 47 kohms
Maximum gain: 12 dB with maximum potentiometer setting
Frequency response: 10 Hz (-0.3 dB) to 35 kHz (-1 dB)
Signal to noise ratio: > 85 dB at gain 0 dB
THD: < 0,006 % at 18 mW/330 ohms
Channel separation: > 80 dB at 10 kHz
Output power: 330 ohms/110 mW, 33 ohms/180 mW
Output impedance: pre-out 105 ohms, phones out 5 ohms
Connectors audio: Neutrik headphone sockets with gold-plated contacts
1 x pre-out
2 x phones out
Line in/pre-out: RCA
Power consumption: app. 4 W through external wide range wall power supply (without any optional pc board)
Outer dimensions: W x D x H160 mm x 120 mm x 43 mm (audio section)
Weight: 0.5 kg (1.1 lbs.) net (audio section)
