D-102 III 3T Hybrid Interconnect (Pair)

With our ever continuing technical improvements, it is logical to replace the already since 1982 available D-102 Series (after 24 upgrades in the meantime) by an actual HYBRID version. Together with our Linear Structured Carbon® technology, we have therefore applied some number of strands from our highly acclaimed 3T technology into the new D-102 III Hybrid.

The D – 102 III HYBRID is a warm yellow-orange coloured very flexible balanced interconnect with a 3 layer shielding.

• The 2 centre conductors are made of 40 dense and very pure silver coated strands made of a very high grade Matched Crystal (MC) OFC. Over each centre conductor an extra Linear Structured Carbon® (LSC) saturated layer is applied.This extra layer of LSC highly improves the quality of the signal transmission by performing electrical bridging on micro-scale and by converting the external magnetic field close to the conductors into an electrical signal again.

• 4 strands of 3T have been applied into the design. 3T: True Transmission Technology offers a much higher resolution and detail compared to any other metal technology used so far.

• The resistance of each centre conductor is 5.5 Ohm/100 meter.

• The capacitance between the 2 internal conductors is a very low 37 pF/meter; in balanced operation, even in rather high impedant circuitry, the overall losses and/or phase-shift remain very low.

In unbalanced operation the two internal conductors can simply be taken together with the shield acting as the signal return, though the better and preferred layout (which we apply) has the shield only connected to signal ground at the signal source side (marked by a ground-end marking sticker) and one of the internal conductors functions as signal return.

Features

• The warm yellow-orange colored jacket is made of our HULLIFLEX®.

• 4 strands of 3T have been applied into the design. 3T: True Transmission Technology offers a much higher resolution and detail compared to any other metal technology used so far.

• The insulation of the two centre conductors is made of polyethylene foam; one in white, the other in brown.

• Surrounding the centre conductors, special treated artificial filler fibres provide a perfect protection against losses caused by increased humidity over a longer period.

• The triple shielding consists of 2 helical layers with a total of 180 dense and very pure silver coated strands made of a very high grade of Matched Crystal (MC) OFC with an extra layer of LSC saturated tape in between.

D-102 III 3T

Design purpose:  Interlink

Available versions:  Balanced (XLR), Unbalanced (RCA)

Conductor material:  Silver with 4 strands of 3T

Product range:  Mid-range

Jacket color:  yellow

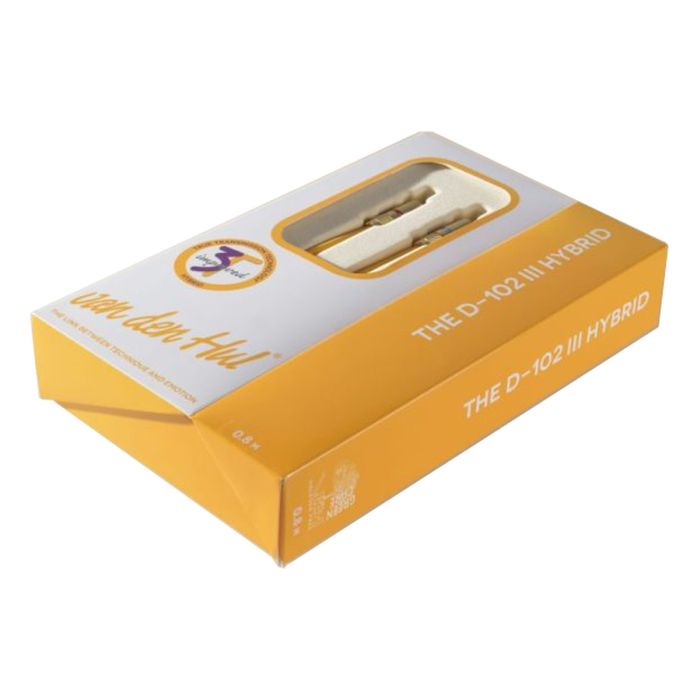

Standard sales unit:  Packed in box starting from 0.8m.
