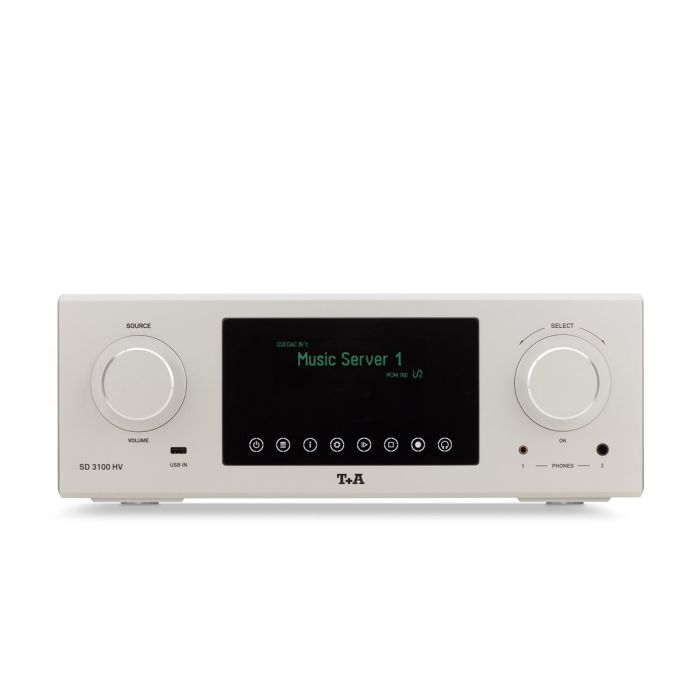

SD 3100 HV Streaming DAC

The Reference Streaming DAC
The SD 3100 HV is with the exception of the pre-amplifier section identical with the SCD 3100 HV.

The SD 3100 HV is a purist converter / streamer which in an HV system acts as ultra-high quality player and converter for every imaginable digital source. It can be connected to the P 3000 HV pre-amplifier or the PA 3100 HV integrated amplifier via one of its analogue outputs. If you wish to play CD or SACD, the PDT 3100 HV reference disc mechanism can be connected to the SD 3100 HV.

The SD 3100 HV – and also a full HV system – can be controlled using the F 3100 remote control handset or one of the T+A apps.

Since more and more audiophile music enthusiasts use high-quality headphones, we have developed a particularly good, high-performance analogue headphone amplifier which also exploits HV technology; it works completely in Class A mode, and offers outstanding sound quality. The connection sockets for 6.3 mm jack plugs and high-quality, quadrupole-symmetrical pentaconn plugs are located on the front. Like all our HV devices the SD 3100 HV is built of pure aluminium, without any ferro-magnetic materials at all, and features five compartments separated by aluminium dividing walls. These sections house the motherboard with digital inputs, the D/A converters with analogue output stage, the analogue mains section, the digital mains section and – in the massive front panel – the control section with its bright display and sensor buttons.

Within just two years the HV-series has developed into a line of high-end electronics which has gained some of the finest reviews and assessments world-wide. In that short time it has made T+A the leading high-end manufacturer in Germany. The HV-series first appeared in 2013, and was based on our thirty years of experience in the development and construction of first-class transistor amplifiers and valve devices. The new series incorporates a revolutionary concept combining the sonic and technical advantages of both technologies, at the same time avoiding the inherent disadvantages of present-day valves. The HV = High Voltage technology is employed in the amplifier stages of all the machines in this series, and is the secret behind their outstanding performance and sound quality. The source devices of the same series are just as uncompromising and superb as the amplifiers. They represent absolutely the highest level in the processing and reproduction of all digital sources.

The HV-series is the true embodiment of the original meaning of the term ‘high-end’: innovative technologies, uncompromising construction and absolutely peak performance.

For the HV-series we developed a whole raft of unique and superior technologies which are available exclusively to T+A: amplifier stages work at very high voltages, and are therefore inherently more linear in character than conventional circuits; the players feature separate high-performance converters for PCM and DSD, digital and analogue signal processing are kept consistently separate from each other, and specific subassemblies are galvanically isolated. All devices are fully channel-separate and designed on the double-mono principle. They are of entirely discrete construction, without operational amplifiers (op-amps). Amplifier output is more than 500 Watt per channel. The mechanical construction of all cases is extremely sophisticated, based on an internal framework of 10 mm thick machined aluminium plates. All case components are manufactured from pure aluminium, some of them machined from the solid. Absolutely no ferro-magnetic components are used.

Analogue output:
     Coaxial (RCA) | Balanced (XLR):   2,5 Veff / 20 Ohm | 5,0 Veff / 40 Ohm
     Headphone output:  6,3 mm Klinke (20 Ohm) and 4,4 mm Pentaconn (8 Ohm)

Connections
     Digital output:  1x coax, IEC 60958 S/P-DIF (LPCM)
     Digital inputs:
          1 x AES-EBU 32...192 kHz / 16-24 Bit
          6 x S/P-DIF:   2 x Standard Coax, 2 x high quality BNC 32...192 kHz / 16-24 Bit,
          2 x optical TOS-Link 32...192 kHz / 16-24 Bit

          2 x USB DAC:   Device-Mode with max. 768 kSps (PCM) und DSD 1024*, supports
          asynchronous data transfer.   *DSD512 und DSD 1024 with Windows PC with
          appropriate driver installed or Linux PC with 4.4 Kernel or higher only.

          2 x USB Master-Mode for USB-Mass storage (Stick or HDD)
          2 x HDMI IN, 1 x HDMI OUT with ARC
          1 x IPA (LVDS)

Network connection
     LAN: Fast Ethernet 10/100/1000 Base-T, WLAN: 802.11 b/g/n

D/A-Converter
     PCM:  Double-Differential-Quadruple-Converter with four 32-Bit
                    Sigma-Delta D/A-Converter per channel. 705,6 / 768 kSps
                    conversion rate
     DSD:  T+A-True-1Bit DSD D/A-Converter, up tp DSD 1024 (49,2 MHz),
                    native bitstream
     Upsampling (PCM):   T+A-Signalprocessor – synchronous upsampling with
     4 selectable oversampling algorithms FIR short, FIR long, Bezier/IIR, Bezier
     Analogue filter:   Phase-linear Bessel filter 3rd order, switchable with
     60 or 120 kHz cut off frequency
     Frequency response
          PCM 44.1 kSps:  2 Hz - 20 kHz
          PCM 48 kSps: 2 Hz - 22 kHz / DSD 64:  2 Hz - 44 kHz
          PCM 96 kSps: 2 Hz - 40 kHz / DSD 128:  2 Hz - 60 kHz
          PCM 192 kSps: 2 Hz - 80 kHz / DSD 256:  2 Hz - 80 kHz
          PCM 384 kSps: 2 Hz - 100 kHz / DSD 512:  2 Hz - 100 kHz
          PCM 768 kSps: 2 Hz - 120 kHz / DSD 1024:  2 Hz - 120 kHz
     THD:  < 0.001 %
     S/N ratio:  > 117 dB
     Channel separation:  > 110 dB

Streaming Client
Formats / Standards:
     MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC / UPnP AV, T+A Control
     Data rates:  PCM 32...192 kHz,16/24 Bit; MP3 bis 320 kBit, variable and
     constant bit rate
     Music services:  Tidal, Deezer, qobuz (Subscription required)
     Features:   Gapless Playback for MP3 (Lame), WAV, FLAC, T+A MusicNavigator
     App for iOS und Android

Tuner
     Internet Radio:   Airable Internet Radio Service (> 11000 Stations worldwide)
     FM, FM-HD:   87,5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA
     DAB, DAB+:   168 -240 MHz (Band III); sensitivity 2,0 µV, S/N > 96 dBA
     Features:   RDS/RDBS, Stationname (PS), Programm type (PTY), Radiotext (RT)

Bluetooth
     Bluetooth Standard / Codec:   A2DP (Audio), AVRCP 1.4 (Control) / aptX®,
     MP3, SBC

Mains / Accessories / Dimensions
     Mains:   2 x 110-120 V or 220-240 V, 50-60 Hz
     Operation:  2 x 40 W
     Standby:   < 0,5 W
     Dimensions (H x W x D) / Weight:   17 x 46 x 46 cm / 26 kg
     Accessories:   2x power cord, remote control F 3100, BNC adapter
     Finishes:  Silver Laquer 47 or Titanium Laquer 64
