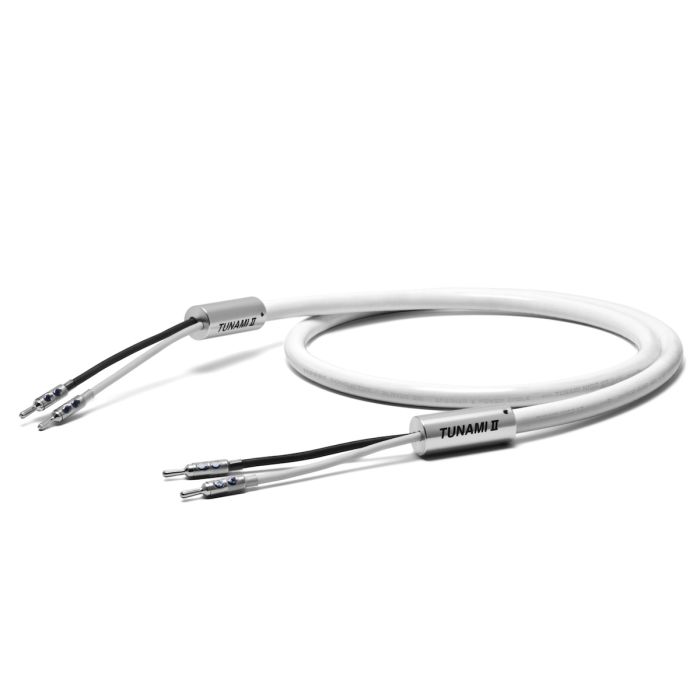

Tunami II SP-B V2 Bananas Speaker Cable (Pair)

$760.00
Frequent Flyer

Please note, this item is frequently subject to extended lead-times which can stretch out to 5-6 weeks.


Oyaide Electric, "102 SSC precision conductor" was completed after a total of two years of work. "TUNAMI NIGO V2" speaker cable was born from the benefits of this conductor. TUNAMI II SP-B V2" is a assembled product with Oyaide's proud banana plug "SRBN" installed to maximize the dynamism of the "TUNAMI NIGO V2"..
SRBN" plugs are the only way to achieve the best fit to the speaker terminals. The sound quality of the SRBN, combined with the vibration-damping properties of the strong machined aluminum branch stabilizer, takes the "TUNAMI NIGO V2" to a higher level.

With perfect compatibility between amplifier and speakers, "TUNAMI II SP-B V2" invites you to a flood of mellow and dynamic sound.

Features
"102 SSC" - Oyaide Electric Precision Conductor
    •    To avoid impurities as much as possible, only virgin copper that does not contain any recycled copper is used in accordance with JIS C1011.
    •    Peeling process is applied to remove 100% of impurities attached to the surface.
    •    In order to facilitate the flow of electrical signals through the surface layer of the conductor, the strand is made finer using a natural diamond die to improve the surface smoothness of the strand.
    •    The stranded wire is processed with a processing accuracy of ±1μm, far exceeding the standard error tolerance of ±8μm.
    •    Two annealing processes are used to eliminate mechanical stress distortions in the strands.
    •    Thorough product control of manufacturing control values, maintenance, shipping days, etc. Achieved the highest conductivity of 102.3% IACS.

Short Pitch Stranded Wire Eliminates Sound Quality Degradation Caused by Inter-wire Distortion.
Short pitch stranded wire twisted at 1.15 times the normal tension eliminates random gaps in the conductor and suppresses sound quality degradation caused by inter-wire distortion.

We also paid close attention to the adhesion ratio between the insulator and conductor. The insulation and conductor are uniformly adhered to each other to eliminate random gaps, thereby eliminating degradation of sound quality due to inter-wire distortion.

Polymer Polyolefin Insulation with Excellent Electrical Characteristics to Reduce Signal Loss.
Polymer polyolefin with excellent electrical characteristics is used for the insulation coating of the conductor. Compared to ordinary PVC insulation, it has an extremely low dielectric constant of 1/4, which reduces signal loss and produces a less muddy reproduction sound. In addition, the use of different polyolefin materials for the exterior and interior prevents resonance from affecting the sound.

Ultimate Noise Protection with 3-Layer Sealing Consisting of Electromagnetic Wave Absorber/Carbon Layer/Copper Foil
Three-layer sealing with electromagnetic wave absorber (1st layer), carbon layer (2nd layer), and copper foil (3rd layer) is adopted.

The first layer converts electromagnetic waves caused by the inevitable magnetic flux disturbance into heat energy by mixing the electromagnetic wave absorber into the compound. When electricity flows through the cable, weak vibrations are generated, and the vibration causes corona discharge in materials charged with static electricity.

Therefore, a semiconductor layer (carbon layer) is added in the second layer to promote the discharge of static electricity without affecting the conductor.

The third layer is a copper tape shield to protect the conductor from external noise. In addition, the copper foil shield is placed in close proximity to the drain wire and is bonded to ground to further improve the signal-to-noise ratio. This shields not only external noise, but also internally generated noise and spark noise caused by vibration. Experience the ultimate in noise protection, the 3-layer shield.

Oyaide's Original Banana Plug "SRBN" is installed
Oyaide Elec, silver/rhodium-plated banana plugs "SRBN" are attached to a total of eight locations on both right ends. The base material is made of phosphor bronze, which has excellent springiness, and is machined by NC machining. The body is carefully buffed and polished by hand, and a mirror finish is applied to the surface. The body is polished to perfection and finished with a two-layer plating of sterling silver and rhodium. This original two-layer plating gives the "SRBN" a high quality and elegant atmosphere as well as sound.

The "SRBN" is joined to the cable by a torque-controlled screw connection. In addition, the plug and cable are completely sealed with a tough, gas-barrier heat-shrinkable tubing that is both durable and oxidation-proof for the conductors. The heat-shrinkable tubing is highly transparent, allowing a glimpse of the blue glint of the stainless steel screws that are the design feature of "SRBN" to be seen at the end of the cable.

Strong aluminum machined bifurcated stabilizer. The bifurcated stabilizer is an original part developed exclusively for "TUNAMI II SP-B V2" and is made by NC machining a round aluminum rod to a high precision." This precision part, perfectly matched to the design dimensions of the "TUNAMI NIGO V2," is mounted stably using fine threads with strictly controlled torque, and by making multiple contacts at six points with the cable section. The mass and vibration damping properties of aluminum make TUNAMI II SP-B V2 the high-end speaker cable we could have wished for.

Cable Outer Sheath
The color of its outer sheath is ceramic white which was selected with consideration of interior matching. Its 5.5sq cross-section area of the conductor has excellent vibration damping property and stable signal transmission.

Specs
Model Name:  TUNAMI â…¡ SP-B V2
Cable:  TUNAMI NIGO V2
Conductor Material:  102SSC
Conductor Size / AWG:  5.5sq(69/0.32mm)/ 10AWG
Insulation Material:  Molecular polyolefin
Shield:
    Layer 1 - EMI absorption Polyolefin
    Layer 2 - Carbon PE separator
    Layer 3 - Copper foil
Outer Jacket Material:  Polyurethane
Cable Diameter (Nominal):  14.0mm
Stabilizer Material:  Aluminum (Stabilizer with damping function)
Terminals:  SRBN banana plug (Silver + Rhodium plating)
