LH-10000

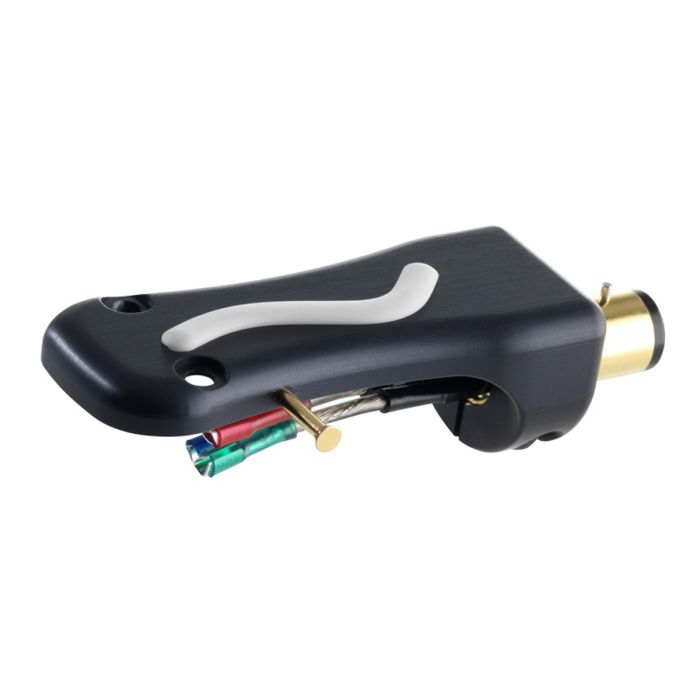

The LH-10000 is an exceptionally high-quality headshell made using a high performance Aluminum alloy with Zinc as the primary alloying element. The Aluminum alloy used for the LH-10000 is strong, with strength comparable to steel. It has good fatigue strength and machinability but offers more resistance to corrosion than many other Aluminum alloys.
Materials and features
The LH-10000 is an exceptionally high quality headshell made using a high performance Aluminum alloy with Zinc as the primary alloying element. The Aluminum alloy used for LH-10000 is strong, with strength comparable to steel. It has good fatigue strength and machinability but offers more resistance to corrosion than many other Aluminum alloys.
The LH-10000 features a precision machined slit on the top plate. A piece of Ortofon's special proprietary TPE (Thermo-Plastic Elastomer) compound with excellent damping properties is integrated into the slit. LH-10000 incorporates damping technology similar to the Ortofon TA-110 / TA-210 tonearms and the Xpression cartridge, promoting a further reduction in unwanted resonances.
LH-10000 applications
The LH-10000 is fitted with the set of the most sophisticated lead wires identical to the Ortofon LW-800S, composed of pure silver and silver coated wire. Silver coated wire transmits the very clear high tone signals, which brings the brilliant tonality.
The LH-10000 is perfect for a variety of High-end cartridges, including MC Anna, MC Anna Diamond, MC A95, MC Windfeld Ti, and Cadenza Series, e.g., the Cadenza Bronze as well as the historical MC A90, MC Windfeld, MC Century, Kontrapunkt series, and MC Jubilee.
The design and mechanical dimensions of LH-10000 offer an elegant and virtually plug and play solution between one of these Ortofon High-End cartridges and our TA-110 / TA-210 tonerams.
The LH-10000 is azimuth adjustable, which is beneficial for optimal channel separation.
- Mounting distance: 42.4 mm
- Headshell material: High performance Aluminium alloy with zink
- Weight without screws: 14.5 grams
- Headshell length: 52.0 mm
- Headshell width: 19.4 mm
Ortofon-branded products are warranted against defects in materials and workmanship for a period of 2 years from the date of original retail purchase when used in accordance with Ortofon’s user manuals. If a defect arises during the warranty period, Ortofon, at its option will (1) repair the product at no charge or (2) exchange the product with one of equivalent functionality or one that is at least functionally equivalent to the product it replaces. This warranty excludes damage resulting from abuse, accident, modifications, unauthorized repairs, improper installation, or other causes that are not defects in materials and workmanship as well as normal depletion of consumable parts such as styli unless failure has occurred due to a defect in materials or workmanship.
