EA-1200 Phono Stage

EA-1200 Tube Phono Amplifier

A separate 3-unit, tube-based LCR phono amplifier with a non-feedback design, engineered to reveal the true essence of the music and the artist’s passion.

Believing that analog audio still has untapped potential, Phasemation introduced the world’s first 3-unit phono equalizer, the EA-1000, in 2012. In 2024, the flagship EA-2000 followed, integrating all six of Phasemation’s core technologies with unmatched precision. Now, after nine years, Phasemation proudly presents the EA-1200 - a new standard and true successor to the EA-1000 - carrying forward its legacy while inheriting the rich, next-level tonal quality of the EA-2000.

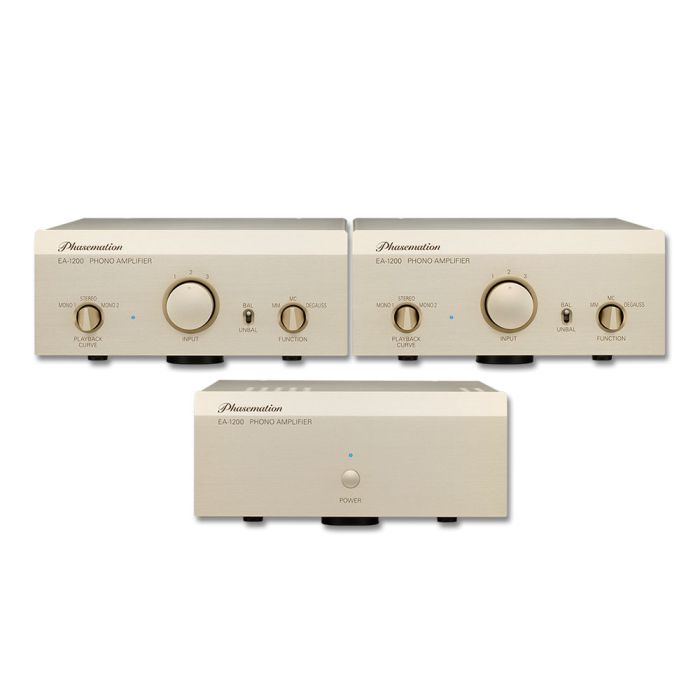

A tube type LCR non-feedback phono amplifier of independent Lch & Rch composed of 3 units.

1. MC step-up transformer that is specially tuned based on the transformer containing T-1000 is built inside.
2. Newly designed vacuum tube type LCR equalizer abiding to high sound quality and the independent usefulness of the left and right.
3. Worked more on the countermeasures towards noises and more clean and powerful left/right (in common) power supply based on the EA-1000.

The EQ amplifier with the left and right divided independently and supported by a powerful power supply, the played sound with its high S/N ratio and high resolution delivers the highest degree of realism of the performer with an overwhelming sense of liveliness and good visibility of the performer on stage.

Non-feedback LCR equalizer due to tube type unit amplifiers composed with two monaural blocks

1. A transformer equivalent to T-1000 is built in and all three inputs can be switched to MC or MM for balanced inputs. In addition, we adopted the BAL/UNBAL switch for countermeasures towards noises when an unbalanced connection is made on the MC.
2. The non-feedback SRPP-type amplifying circuit of ECC-803S which has an excellent transient response and an outstanding reputation for sound quality plus the low impedance output cathode follower due to ECC-802S are together adopted as a unit amplifier. You can enjoy the large dynamic range and its glossy and lively sound quality that is possible only in vacuum tubes.
3. The LCR type is adopted for the equalizing circuit. Power loss and inductive noise in the signal line can be minimized and sound quality deterioration can be suppressed by adopting the LCR type which can reduce the impedance of the signal system. The information obtained is outputted from the last stage without any losses by adopting large coils, high quality film capacitors, and so forth.
4. Three types of equalizer curve switches are installed. The RIAA for stereo, Mono 1 (for use with DECCA label and so forth) and Mono 2 (for use with Columbia label and so forth) can be selected. Mono1 and Mono2 are for monaural use only. This enables a higher fidelity playback for both the DECCA and Columbia labels.

Power supply with direct heat rectifier tubes 5U4G composed of a monaural block using a high-capacity R-core transformer.
For the rectification circuit, an R-core power transformer with excessive capacity is used and a rich rectification circuit is used for each independent left and right power supplies by using two choke coils and rectifier tubes (5U4G) which in principle do not generate switching noises. Furthermore, the power supply transformer and choke coils are magnetically shielded to provide a cleaner and stronger power to the amplifier. In addition, a 3-terminal regulator DC ignition system is used for the heater power supply of the amplifier achieving a high S/N ratio.

Ensuring the quality
A 10mm-thick aluminum slant front panel pursuing the elegant design of EA-2000, a 1.6mm-thick copper-plated steel plate chassis base, and a 2mm-thick aluminum cover with a magnetic shield are used to ensure rigidity and reduce magnetic distortion. The foot is equipped with heavy metal insulators to isolate external vibrations.  The RCA terminals are made by Flutech, renowned for their high quality and high sound quality, and the XLR terminals are plated by Neutrik to aim for total balance in the sound quality.  The highly universal and elegant polishing does not abandon the pleasure for owning this

Form:  Tube Type LCR Non-Feedback Phono Amplifier
Input Form:  MM & MC
Input Sensitivity:

• MM: 2mV
• MC: 0.1mV

Suitable Cartridge Output Impedance:

• MM:  47kΩ or less
• MC:  1.5 - 40Ω

Gain:

• MM:  40 dB
• MC:  66 dB

Input Conversion S/N Ratio:

• MM:  –120dBV
• MC:  –146dBV

Rated Output Voltage:  200 mV (1kHz)
Rear Curve Tolerance:  ±0.5dB (20 - 20kHz)
Power Consumption:  43W(100VAC 50 - 60Hz) for each ch
Dimensions:

• Amplifier:  210(W) x 93(H) x 365(D) x2
• Power Supply:  210(W) x 93(H) x 346 (D) x1
• Weight:  Amplifier 4kg x2、Power Supply 5.8kg

*Caution: For the EA-1200T input, the XLR or RCA, only one can be used for the input. If the two are used at the same time, it can be the cause of malfunctions
