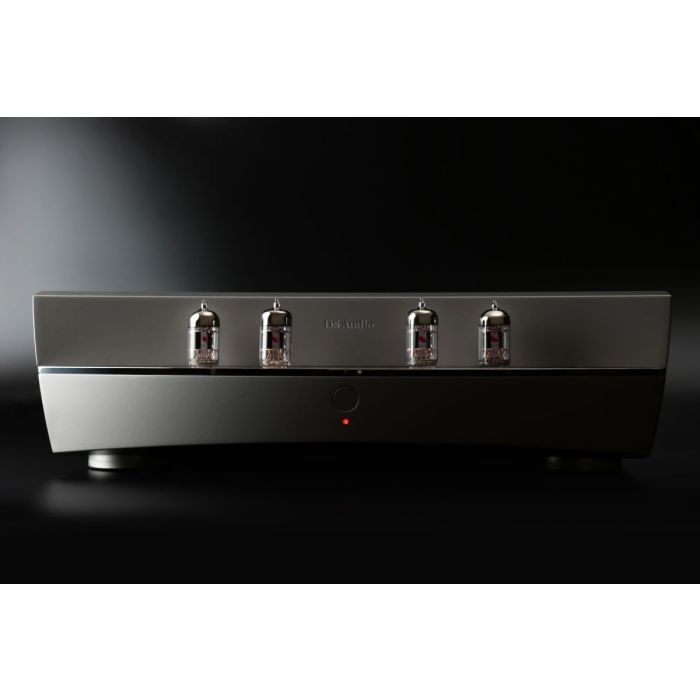

TB-100 Tube Phono Equalizer

TB-100 Tube Phono Equalizer
Experience a New Analog Era with Vacuum Tubes and Optical Cartridges

Pure Vacuum Tube Amplifier
The TB-100 features carefully selected, quad-matched ECC82 (12AU7) tubes, optimized specifically for this model. Using in-house tools, performance variations during operation are minimized to within 1% (0.1dB), ensuring peak performance. Each channel is equipped with an inner tube for voltage amplification and an outer tube for output buffering, delivering a rich, transparent sound quality. Moreover, the amplifier employs a straightforward two-stage amplification circuit paired with low-impedance cathode follower output stages to provide a pure and dynamic audio experience.

Wideband Transformer Input
The audio signal from the PD is converted to a current-voltage signal, ensuring precise phase alignment between the left and right channels. Additionally, the design achieves a flat frequency response within -1dB over a broad range from 10Hz to 70kHz, delivering clear and high-quality sound

Twin Mono Structure
A symmetric twin-mono configuration is adopted, incorporating completely independent grounds and power transformers. This design eliminates crosstalk between the left and right channels, enabling a cleaner and more immersive soundstage.

Low-Noise, Low-Voltage Power Supply
A dedicated low-noise regulated power supply is included for LED power and the PD negative bias voltage. Separate power circuits and transformers for each PD ensure greater voltage stability supplied to the cartridge

Rated output voltage:  500mV (1kHz)
Input terminals:  RCA terminals
Output terminals:  RCA terminals
Output impedance:  700Ω
Dimensions:
      Width:   17.3 in
      Height:  5.9 in
      Depth:   16.6 in
Weight:  42 lbs
