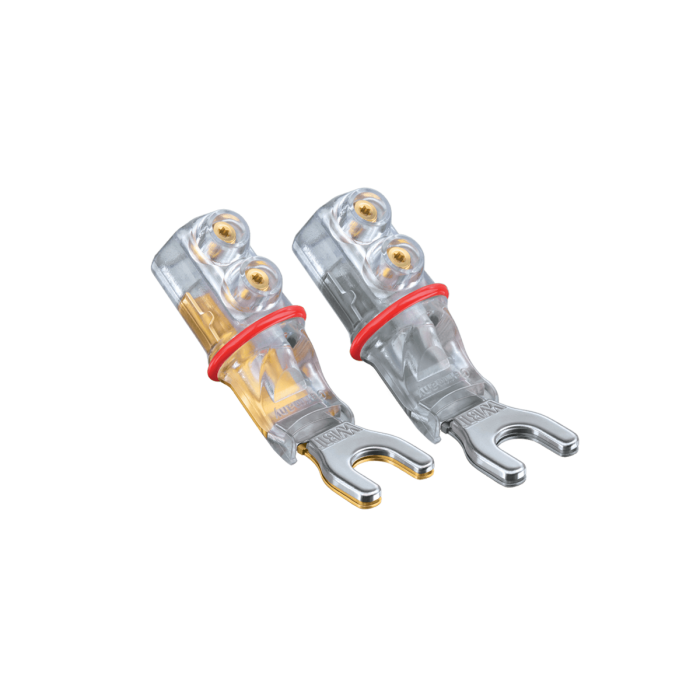

1/4 inch / 6.4mm sandwich spade connector. Pure Fine Silver contact is direct Platinum plated to protect against tarnish. High current spade lug with elastomeric shock absorber for progressive contact pressure eliminating structure born and air born noise as well as magnetostriction. Fully insulated body is safe to use and conforms to international safety standards. Easy fit for wire sizes up to 10mm² / 8AWG.
KIT includes: 4 Plugs, 1 Torx key, boxed.
From US Patent #6,319,078
High-current spade lug with elastomer shock absorber for pro-gressive contact pressure eliminating structure-borne and air-borne noise as well as magnetostriction.
With insulation body for safety conformable use as loudspeaker cord plug admissable in line with CE3 EN 60065 and the international standard IEC4 65 (>34.5 volts).
1. Mechanics
• one-piece construction, contact elements with narrow tolerance
• dual screwing cage (contact, strain relief)
• VA-elastomer shock absorber (hydraulic principle)
2. Materials
• signal conductor: fine silver
• absorber cap: high-grade steel VA, non-ferromagnetic
• elastomer damper: NBR (nitrile-butadiene-rubber)
• insulation material: Makrolon1 (polycarbonate), T. max. 85-110°C
CE3 conformable inline with EN 60065 and IEC4 65
• marking ring: TPU (thermoplastic polyurethane), T. max. 50-95°C
3. Surface
• signal conductor: nickel-free platinum finish, non-ferromagnetic
4. Operating characteristics
• constant current ID = 102 A
• authorized max. peak current IS = 103 A
• contact resistance Rü < 10-4 Ohm
• insulation resistance Riso> 1014 Ohm
• electric strength of the insulation > 30 kV
5. Connection options
• designed for solder-free crimped connections
• internal terminal for crimped cable ends up to 10 mm2 (7 AWG), permanent fixing by self-securing headless screws
• external terminal with 6 or 8 mm contact fork (0661 & 0681 respectively)
6. Warning against usage of contact cleaners:
Their contents may cause damage to the insulators!
