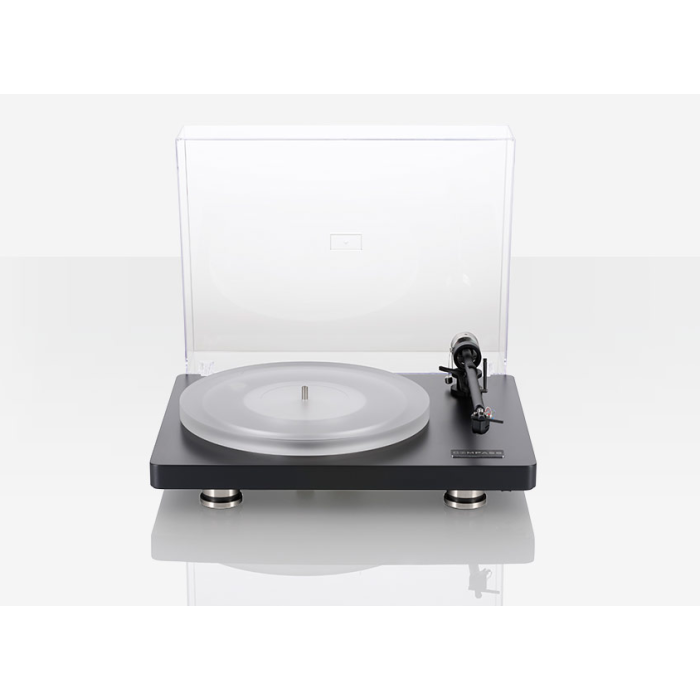

Clearaudio opens the door to genuine high-end technology with the ready-to-play Compass turntable: compact, uncompromising, and accessible. The result of over two years of development, the Compass distills the full fascination of analog sound reproduction into a singular experience, for everyone who wants not just to listen to music, but to truly feel it.
Focus on the Essentials
To make high-quality vinyl enjoyment possible in this price segment, Clearaudio concentrated their expertise on the elements that matter most to sound quality. At its heart lies a precision bearing combined with a meticulously crafted platter and sub-platter system. Added to this are the new T1 tonearm – a compact version of Clearaudio's proven Satisfy tonearm – and the specially developed N1 MM cartridge. Together, they create a sound experience that far exceeds the expectations for compact-class systems.
Where Sound Meets Craftsmanship
Every acoustically relevant component, from tonearm and cartridge to bearing, is manufactured with utmost care at our facility in Erlangen. Precisely machined parts, selected materials, and a design focused on durability embody the Clearaudio signature quality: handmade in Germany.
Perfectly Minimalist Design
The Compass impresses not only with its sound but also with its clear design language. Available in black or silver, its look blends purist elegance with technical sophistication. A solid steel plate on the underside ensures stability and supports low-resonance performance. A high-quality acrylic dust cover with stainless steel hinges protects the turntable without disrupting the design.
Unbox. Set Up. Turn Up.
The Clearaudio Compass is delivered fully assembled and ready to play, allowing direct entry into the world of high-fidelity music enjoyment. A user-friendly toggle switch on the underside of the unit selects the desired speed, while the precisely engineered tonearm is gently lowered using a turned aluminum lever. Height-adjustable feet with integrated decoupling ensure optimal smoothness of operation.
Construction details:
- Resonance-optimised turntable
- Turntable chassis comprises medium-density wood fibre
- Silver or Black finish
- Steel bottom plate for additional weight Including decoupling elements
Speed options:
- 33 ⅓, 45, U/min
Drive unit:
- Decoupled and resonance damped 12V DC motor
- Flat belt-drive
- Plug-in power supply unit, designed for worldwide use with all networks and power frequencies
Bearing:
- Polished and tempered steel spindle in a sintered bronze bushing, running on a teflon thrust-pad.
Platter:
- 20mm /0.787 inches main platter, made out of acrylic with excellent dimension stability / precision CNC machined aluminium sub-platter.
Speed accuracy (measured):
- ± 0,05 %
Power consumption:
- Max. consumption: 4 watts
- Consumption in operation: 1.95 watts
- Standby: 0.74 watts
- Off mode: 0.0 watts (switched off at the bottom)
Total weight:
- Approx. 17.6 lb. (incl. tonearm and cartridge)
Dimensions (W/D/H):
- Approx. 17.13 × 13.39 × 4.72 inches (incl. Dustcover)
- Approx. 435 × 340 × 120mm (incl. dustcover)
Manufacturer’s warranty:
- 2 years* * Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase
- Construction details: Radial tonearm with external anti-skating counterweight
- Material: Aluminium (black/silver), Counterweight: stainless steel
- Cartridge balance range: 2.5g – 17.0g
- Overhang: 17.12mm
- Total length: 305.00mm
- Effective length: 239.12mm
- Mounting distance (tonearm pivot to spindle): 222.00 mm
- Offset angle: 24.02°
- Wiring: 1.1m Clearaudio Direct Wire PLUS terminated with RCA
- Type: Moving Magnet
- Total mass: 12.6 (± 0.2g)
- Frequency response: 20Hz – 20kHz
- Output voltage (1kHz, 5cm/s): ~ 3.3mV
- Channel separation (1kHz): 20dB
- Channel balance (1kHz): 2dB
- Tracking ability: 80μm
- Recommended tracking force: 2.2g (± 0.3g)
- Coil impedance (1kHz): 0.66kΩ
- Coil inductance: 400mH
- Load resistance: 47kΩ
- Load capacitance: 100pF
- Cantilever / stylus shape: Aluminium / elliptical
- Compliance: 15μ/mN
- Cartridge body: Aluminium
