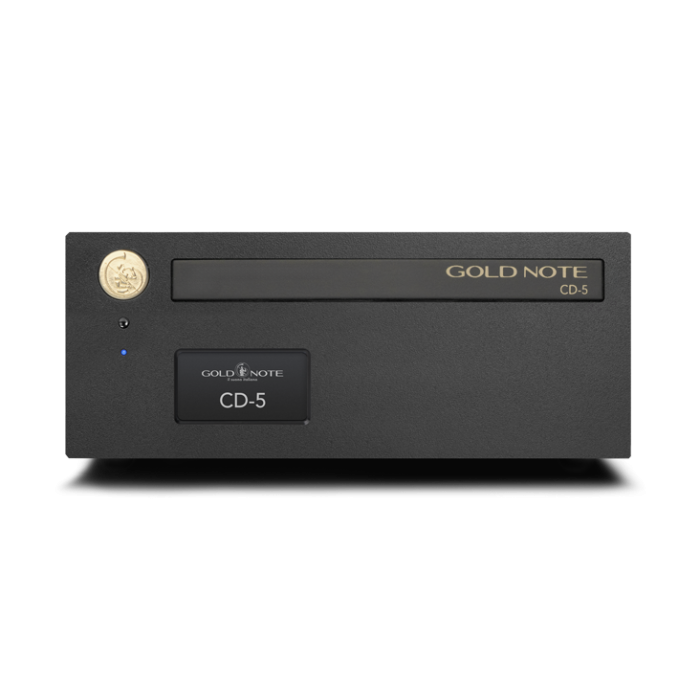

CD-5 CD Player

The Pinnacle of CD Playback Excellence

Experience unparalleled audio fidelity with the CD-5, the definitive choice for discerning audiophiles. Featuring a state-of-the-art high-precision CD mechanism supporting Gapless playback and a high-resolution D/A converter, the CD-5 ensures an impeccable reproduction of every nuance in your music collection. Crafted with meticulous attention to detail, the CD-5’s mechanical chassis and audio circuits are designed to deliver the highest sound quality. By employing select audio-grade components and an analogue signal path design, this masterpiece eliminates noise and intermodulation, ensuring a pure and immersive listening experience. Navigating your music is a breeze with the intuitive touchscreen display and included remote control.

The CD-5 offers both analogue and digital outputs in a fully balanced configuration, providing versatile connectivity options for your high-end audio setup. Elevate your audio experience further by pairing the CD-5 with the optional PSU-10 EVO external power supply. This upgrade enhances dynamic range and reveals even finer details in your favorite tracks, taking your listening enjoyment to new heights.
Indulge in the ultimate musical pleasure with the CD-5, where precision engineering meets unparalleled performance.

MAIN FEATURES

• CD-PLAYER:  CD transport with D/A converter
• D/A CONVERTER:  AKM AK4493
• FREQUENCY RESPONSE:  20Hz-20kHz @ +/-0.3dB
• THD – TOTAL HARMONIC DISTORTION:  0.001% max
• SIGNAL TO NOISE RATIO:  124dB
• DYNAMIC RESPONSE:  123dB
• MECHANISM:  Tray loader by Stream Unlimited (SUOS-Hifi)
• SPEED FLUCTUATION:  0.0001%
• CD FORMATS:  Red Book
• DISC COMPATIBILITY:  CD, CD-R, CD-RW
• GAPLESS PLAYBACK:  Supported
• REMOTE CONTROL:  Multifunctional remote included

INPUTS AND OUTPUTS

• ANALOGUE OUTPUTS
  • 1x unbalanced RCA (2Vrms)
  • 1x balanced XLR (2Vrms)
• DIGITAL OUTPUTS
  • 1x Coax S/PDIF 75Ω
  • 1x TOS-Link
• OUTPUT IMPEDANCE:  100Ω

POWER

• POWER CONSUMPTION:  30W
• POWER SUPPLY:  100-240V, 50/60H
• FUSE (100/240V):  2AT

DIMENSIONS AND WEIGHT

• DIMENSIONS:  200mm W | 80mm H | 260mm D
• WEIGHT:  Kg. 3 – net (6.6 lbs), Kg. 4 – boxed (8.9 lbs)

FINISH:  Black varnished steel and aluminium

• TECHNICAL FEATURES
  • Four rail audio grade power supply
  • Two ultra-low-noise voltage regulators
• MAXIMUM VARIATION OF OUTPUT VOLTAGE:  0,05 %
• LINE NOISE REJECTION:  >80dB
• COMMON MODE NOISE REJECTION:  >80dB
• FULL POWER RESPONSE TIME:  <2,5µsec
• POWER SUPPLY:  100-120V / 220-240V with auto sense, 50/60Hz
• POWER CONSUMPTION:  70W
• DYNAMIC POWER:  >100W
• STAND BY POWER:  <1W
• FUSE:  2A T
• DIMENSIONS:  200mm W | 80mm H | 260mm D
