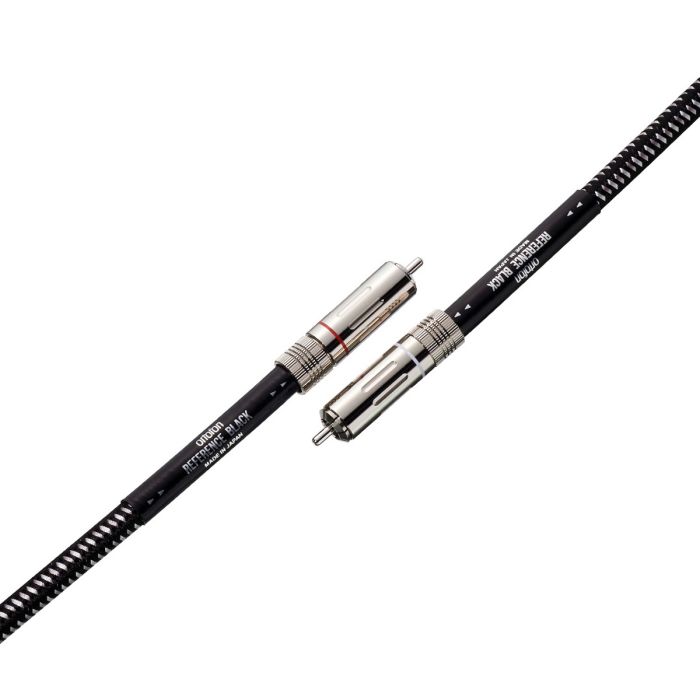

Reference Black
The Ortofon Reference Interconnect cables Series is designed and manufactured by Ortofon Japan. The Reference Black is a reference audio cable par excellence with a well-balanced, neutral and precise sound.
High-end masterpiece
Reference Black technical configuration
① Signal conductors: PCUHD (Pure Copper Ultra High Durability) Ø 0.32 mm × 7② Signal conductors:
• 6N copper Ø 0.18 mm × 4 and
• Silver plated 3N copper Ø 0.18 mm × 16
③ Signal conductors: Silver plated 3N copper Ø 0.12 mm × 30
④ Signal conductors: HiFC (High performance pure copper) Ø 0.08 mm × 49
⑤ Signal conductors: PCUHD (Pure Copper Ultra High Durability) Ø 0.32 mm × 7
⑥ Signal conductors:
• 6N copper Ø 0.18 mm × 4 and
• Silver plated 3N copper Ø 0.18 mm × 16
⑦ Signal conductors: Silver plated 3N copper Ø 0.12 mm × 30
⑧ Signal conductors: HiFC (High performance pure copper) Ø 0.08 mm × 49
⑨ Damping material: Cotton fiber
⑩ Shield: Aluminuim tape
⑪ Shield: Braided wire 4N OFC (Oxygen-free copper) Ø 0.12 mm × 8 × 24
⑫ Insulation: Halogen-free highly resilient elastomer
⑬ Insulation: Braided nylon fiber
⑭ Cable diameter: Ø 10 mm
⑮ Insulation: PE (Polyethylene)
Ortofon-branded products are warranted against defects in materials and workmanship for a period of 2 years from the date of original retail purchase when used in accordance with Ortofon’s user manuals. If a defect arises during the warranty period, Ortofon, at its option will (1) repair the product at no charge or (2) exchange the product with one of equivalent functionality or one that is at least functionally equivalent to the product it replaces. This warranty excludes damage resulting from abuse, accident, modifications, unauthorized repairs, improper installation, or other causes that are not defects in materials and workmanship as well as normal depletion of consumable parts such as styli unless failure has occurred due to a defect in materials or workmanship.
