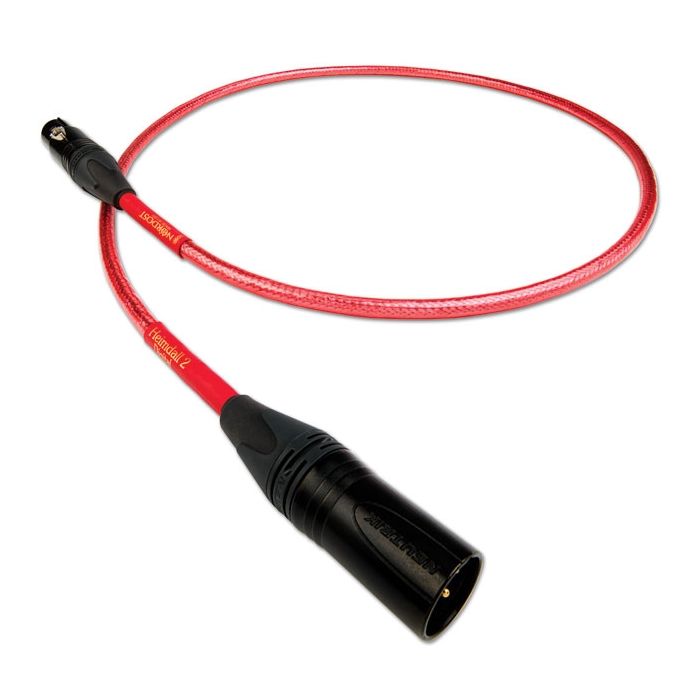

Heimdall 2 AES/EBU Digital Cable

HEIMDALL 2 DIGITAL INTERCONNECTS

Digital data transfer demands precise impedance matching in both cable and connectors. The Heimdall 2 S/PDIF and AES/EBU cables are optimized for digital signal transfer and use a silver-plated OFC solid core conductor suspended in our proprietary, precision Dual Mono-Filament construction. In the S/PDIF cable, this technology is combined with combination BNC/RCA connectors, providing a true 75 Ohm signal path which answers the demand for the precise tolerance needed for clocking and dealing with digital output. Whereas the AES/EBU cable is constructed with impedance matched XLR connectors, providing a true 110 Ohm signal path for digital data which results in clearly audible sonic and musical benefits. The result is an ultra high-speed, low-loss cable specifically designed to deliver the best possible performance from today’s high-resolution digital audio sources. They may only be “ones” and “zeros” but poor impedance matching has a dramatic impact on the accuracy with which they are passed from one electronic device to another. Nordost’s ultra-close tolerance digital transfer solutions deliver the goods, sonically and musically.

Insulation:   Fluorinated Ethylene Propylene (FEP)
Construction:   Mechanically tuned spacing, length and Dual Mono-Filament, twin-axial design
Conductors:   2 x 20 AWG
Material:   Silver-plated 99.99999% solid core OFC
Capacitance:   10.7pF/ft
Impedance:   110 Ohm
Overall Shield Coverage:   97%
Velocity of Propagation:   88%
Terminations:   Gold-plated true 110 Ohm Neutrik XLR

NORSE 2 – HIGH PERFORMANCE CABLES

The Norse 2 family is the second tier in Nordost’s product line, delivering the depth, precision, and nuance previously only found in live performances.

Norse 2 cables are constructed using silver-plated, OFC solid core conductors, extruded FEP insulation, and a mechanically tuned construction which, together, form the basis of Nordost’s great sound. Norse 2 cables build upon those fundamental elements, employing even further technological advances, unlocking the full potential that hifi audio systems have to offer.

After thirty years of extensive research and development, Nordost has perfected a proprietary technique called Mono-Filament technology, which creates a virtual air dielectric by winding an FEP filament in a precise spiral around each individual conductor before extruding an outer FEP “sleeve” around it. By minimizing contact with the conductor, Mono-Filament technology increases signal transfer speeds while enhancing mechanical damping and geometrical precision.

Nordost has also taken a step beyond its original mechanically tuned construction and introduced mechanically tuned lengths, reducing internal microphony and high-frequency impedance resonance.
