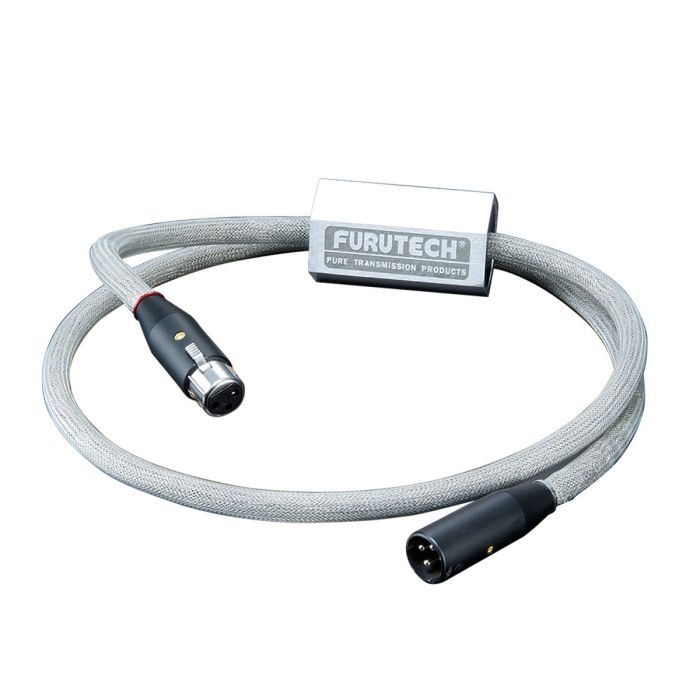

Digi Reference III AES/EBU Digital Cable

RATING

1.2M (Type: Hyper-Balanced Interconnects)

All metal parts are treated with the *FURUTECH α(Alpha) Process (Super Cryogenic & Demagnetizing Treatment)

FEATURES

Top of the line double-shielded α (Alpha)-OCC conductor interconnects, power cords and digital cables featuring extraordinary build quality and Formula GC-303 antimagnetic EMI-absorbent modules Surrounding the cable offering greater resolution, more powerful dynamics, and virtuoso performances from all your components. All connectors are rhodium-plated for optimal signal transfer.

•Double-shielded α (Alpha)-OCC Conductors eliminate radiated noise

•Formula GC-303 Antimagnetic EMI-Absorbent Modules surround each cable

•High performance beautifully engineered XLR connectors [FP-601M (R)] and [FP-602F (R)]

　transfer signal without reflections for extremely low jitter performance

•Pins high-contact luxuriously-finished nonmagnetic rhodium-plated phosphor bronze for stable

　Furutech Pure Transmission signal

•Additionally shielded with special fiberglass and 0.12 mm α (Alpha) conductor braid

•Insulated with air-foamed HDPE reducing capacitance and damping vibration

•Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which

　music develops more fully without artificial upper-frequency “presence region” glare.

•GC-303 allows a deeper, tighter bass to form a solid foundation for the rest of the frequency range,

　better defining the original recording’s venue. Natural, unforced detail reveals nuance and energy

　for an engaging musical experience.

α (Alpha) Conductor Is Composed Of Fine PCOCC Wire Strands Treated With Furutech’s α (Alpha) Cryogenic and Demagnetizing Process

SPECIFICATIONS

Construction and Materials

•30-strand α (Alpha)-OCC Conductor ・ 0.18mm , 1.14mm diameter

•Insulation: 30％ air-foamed HDPE (Red/White) 2.60mm diameter

•Cable Lay: Two twisted cores with cotton yarn

•Cable Wrap: Non-woven fabric wrap approx. 5.8mm diameter

•Shield-1: 0.12mm braided α (Alpha) Conductor braid density: 80％ UP x 6.3mm diameter

•Sheath: Two layers flexible PVC (Dark Brown) 8.0mm diameter

•Shield-2: Special fiberglass and copper wire stranded braid

•Jacket: Nylon yarn braid approx. 10.5mm diameter.

•Shield-3: Special EMI and noise-absorbent Formula GC-303 module

•Connectors: Male [FP-601 M (R)] and female [FP-602 F (R)]

Electrical Properties of Cable Test Method

•Max. Conductor Resistance 26.4 Ω／km JISC3005 6 20℃

•Min. Insulation Resistance 1000 MΩ-km JISC3005 9.1 20℃

•Dielectric Strength AC. 500 V／1 min. JISC3005 8

•Electrostatic Capacitance Approx 42 PF／m at 1 KHz

•Characteristic Impedance Approx 120 Ω at 100 KHz
