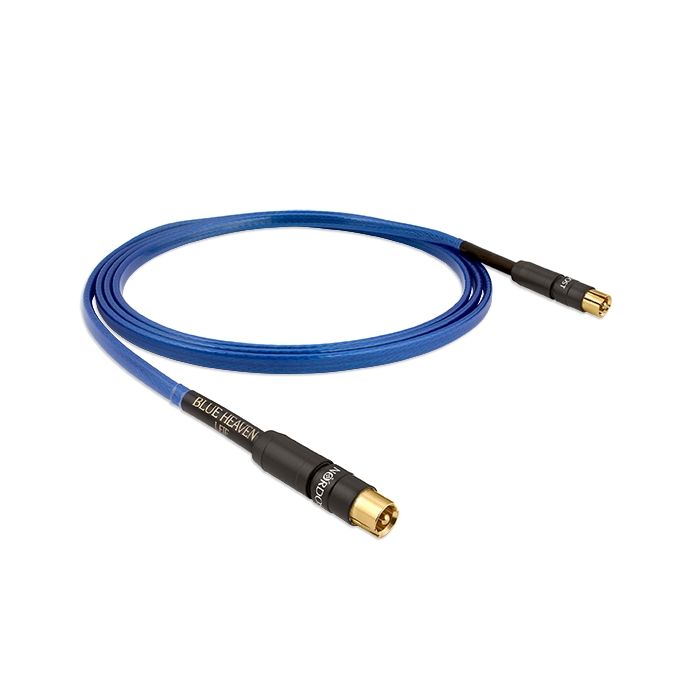

Blue Heaven Subwoofer Cable

BLUE HEAVEN SUBWOOFER CABLE

The Blue Heaven Subwoofer Cable enables hifi enthusiasts to completely integrate their subwoofers with their loudspeakers to create a truly well-rounded experience, highlighting even the lowest frequency extensions on the spectrum. The Blue Heaven Subwoofer Cable consists of four, 22 AWG, solid core, silver-plated, 99.9999% OFC signal conductors and employs an innovative precision FEP extrusion process. The conductors are then covered in a braided shield, addressing any EMI and RFI. The Blue Heaven Subwoofer Cable will allow you to integrate low level frequencies while preserving the precision and speed necessary for a well-rounded, seamless, and all-encompassing sound.

Available Configurations:

Straight: standard connection when using a mono setup for the LFE input of a subwoofer—terminated with one connector on each end.

Y: needed when connecting your mono LFE to both channel inputs on your subwoofer—terminated with one connector on the processor end and two connectors on the subwoofer end.

Y to Y: needed in a pure two channel setup—terminated with two connectors on the preamp end and two connectors on the subwoofer end.

Insulation:   Fluorinated Ethylene Propylene (FEP)
Construction:   Flat, Parallel
Conductors:   4 x 22 AWG
Material:   Solid core, silver-plated 99.9999% OFC
Capacitance:   60.5 pF/ft (198 pF/m)
Inductance:   0.03 μH/ft (0.10 uH/m)
Overall Shield Coverage:   95%
Velocity of Propagation:   74%
Configuration:   Straight, Y, or Y-Y
Termination:   RCA or XLR

LEIF –  UNIVERSAL CABLE SYSTEM

Nordost’s entry level cable ranges are perfect examples of quality cabling set at an affordable price range. The Leif family uses scientifically proven methods and technology derived from the development of our Valhalla and Odin ranges and applies their basic principles to create cables which evoke dynamic, low-loss and realistic performances from even modest components and loudspeakers.

Leif cables are constructed using silver-plated, OFC solid core conductors, which form the basis of Nordost’s great sound. The conductors are then treated with Nordost’s innovative precision FEP extrusion process, where each conductor is individually enclosed in FEP insulation. This technique greatly reduces the dielectric properties of the cables in order to increase signal speeds and accuracy in signal transfer.

To build upon this foundation, Leif cables are designed with a mechanically tuned construction that optimizes the dimensions and spacing of conductors to reduce dielectric effects even further.
