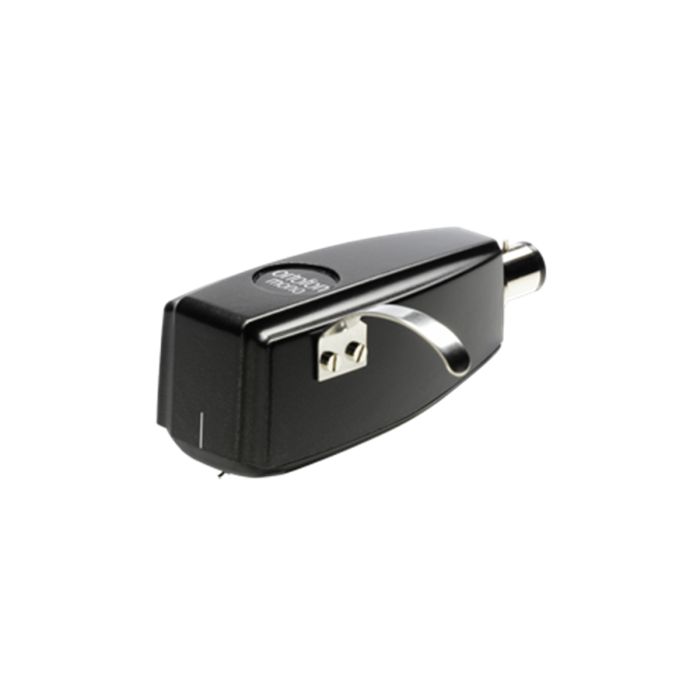

The SPU Mono GM MkII is a high output Moving Coil cartridge with a spherical stylus profile for the playback of early 25µm mono recordings.
The SPU Mono GM MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.
The SPU Mono GM MkII is for the playback of early 25µm mono recordings
The SPU Mono GM MkII is a high output Moving Coil cartridge a with a spherical stylus profile, for the playback of early 25µm mono recordings.
- Output voltage at 1 kHz, 5cm/sec: 3 mV
- Frequency response 20 Hz - 20 kHz: 2/-1 dB
- Tracking ability at 315 Hz: 70 μm
- Compliance, dynamic, lateral: 12 μm/mN
- Stylus type: Spherical
- Stylus tip radius: R 25 μm
- Tracking force range: 3.0-5.0 g (30-50 mN)
- Tracking force, recommended: 4.00 g (40 mN)
- Tracking angle: 20º
- Internal impedance, DC resistance: 100 ohm
- Recommended load impedance: 47 Kohm
- Coil wire material: SHigh Purity Copper (OFC)
- Cartridge body material: Ground wood and resin composite
- Cartridge colour: SBlack matte
- Cartridge weight: 28 g
Ortofon-branded products are warranted against defects in materials and workmanship for a period of 2 years from the date of original retail purchase when used in accordance with Ortofon’s user manuals. If a defect arises during the warranty period, Ortofon, at its option will (1) repair the product at no charge or (2) exchange the product with one of equivalent functionality or one that is at least functionally equivalent to the product it replaces. This warranty excludes damage resulting from abuse, accident, modifications, unauthorized repairs, improper installation, or other causes that are not defects in materials and workmanship as well as normal depletion of consumable parts such as styli unless failure has occurred due to a defect in materials or workmanship.
