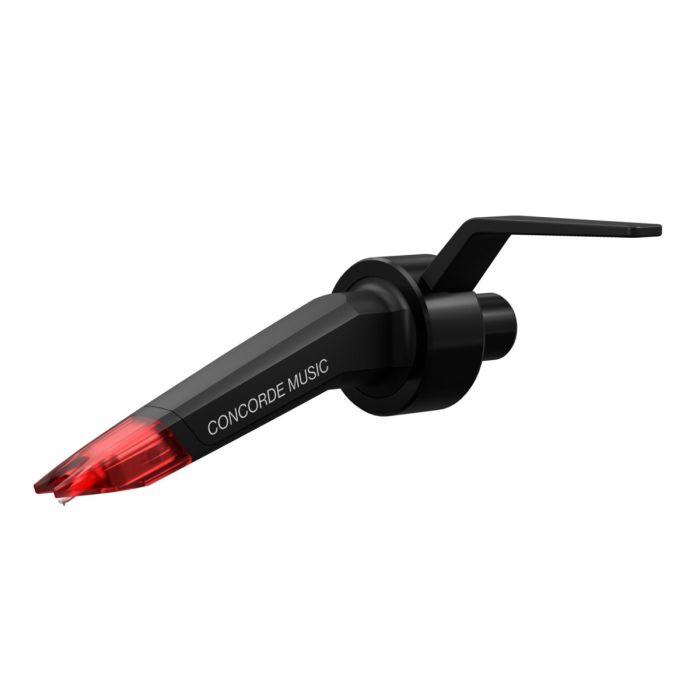

Concorde Music Red
Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.
The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music represents a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Installing a Concorde Music cartridge on a turntable is easy and straightforward, requiring no tools, making it hassle-free and convenient.
Award winning cartridge design
Iconic design
Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.
Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in the audio industry.
Stylus
The Concorde Music Red features an Elliptical diamond polished to the highest standards of the industry, mounted on a premium aluminum cantilever. This ensures the best possible transmission of the vinyl record groove modulations picked up by the diamond.
Unique in-house rubber production
Rubber suspension
The Concorde Music Red utilizes an exclusive Ortofon rubber compound for its stylus suspension. Developed and produced in our unique in-house rubber production, this suspension is a crucial and vital component contributing to the overall performance of the phono cartridge.
Precise and dynamic sound image
Coil system
The Concorde Music features Ortofon's quad-coil generating system with four split pole pins. Silver-plated oxygen-free copper is chosen for the quad-coil system, along with four Ortofon split pole pins.
This results in exceptional channel balance and separation, delivering precise and dynamic sound. With a 6 mV output, it offers lifelike sound with exceptional clarity and fidelity, capturing every detail.
Perfect fit for S-shaped tonearms
Compatibility
Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, making it hassle-free and convenient for all users. This is thanks to the bayonet connector, which makes it compatible with all S-shaped tonearms.
Full upgrade path
Upgradeability
The Concorde Music Red can be replaced or upgraded with all Concorde Music styli, enabling an upgrade path throughout the entire series up to the Concorde Music Black LVB 250.
Upgrading the stylus is a simple task; simply pull the stylus off and replace it with the new one. Remember to keep the stylus guard on when installing the new stylus to keep the needle safe.
- Channel balance at 1 kHz: 1.5 dB
- Output voltage at 1 kHz, 5cm/sec: 6mV
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Frequency response 20 Hz - 20 kHz: +3 / -1 dB
- Tracking ability at 315Hz at recommended tracking force: 80 µm
- Compliance, dynamic, lateral: 15 µm/mN
- Stylus type: Elliptical diamond on Aluminium cantilever
- Stylus tip radius: r/R 8/18 µm
- Tracking force, recommended: 1.8 g
- Tracking angle: 20°
- Internal impedance, DC resistance: 1.27 kΩ
- Cartridge colour: Black/Red
- Cartridge weight: 18 g
- Recommended load resistance: 47 kΩ
- Internal inductance: 815 mH
- Recommended load capacitance: 150-300 pF
Ortofon-branded products are warranted against defects in materials and workmanship for a period of 2 years from the date of original retail purchase when used in accordance with Ortofon’s user manuals. If a defect arises during the warranty period, Ortofon, at its option will (1) repair the product at no charge or (2) exchange the product with one of equivalent functionality or one that is at least functionally equivalent to the product it replaces. This warranty excludes damage resulting from abuse, accident, modifications, unauthorized repairs, improper installation, or other causes that are not defects in materials and workmanship as well as normal depletion of consumable parts such as styli unless failure has occurred due to a defect in materials or workmanship.
