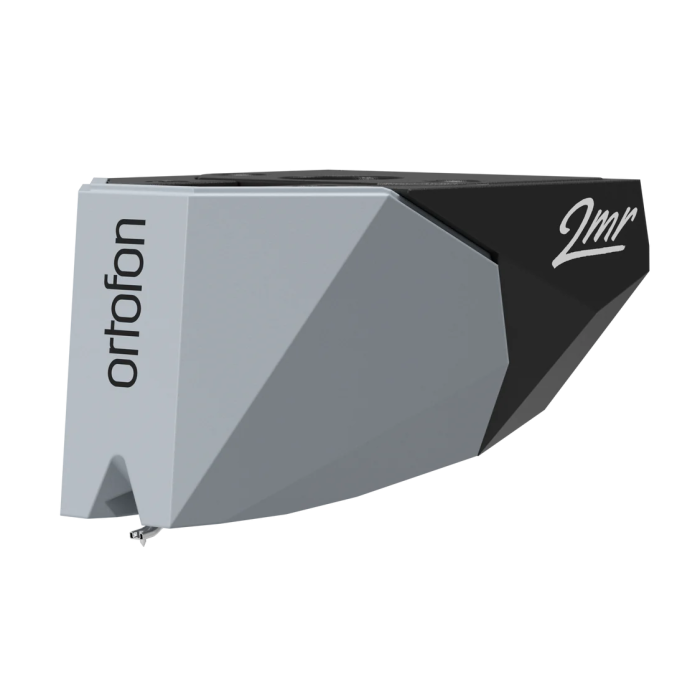

2MR 78
Journey back in time with the 2MR 78 Mono Cartridge, specially designed for playing 78 rpm shellac records. Immerse yourself in the authentic nostalgia of mono vinyl records, brought to life with unparalleled precision and fidelity.
The 2MR 78 features a specially designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.
Stylus
Made for Mono
The 2MR 78 features a stylus' tip with a Spherical diamond, perfect for playback of 78 rpm shellac records. These unique records necessitate a larger stylus profile, and the 2MR 78 flawlessly accommodates this requirement, ensuring optimal playback quality and preserving the authenticity of your cherished collection.
Output
High-performance motor system
The 2MR 78 features a high-performance motor system incorporating unique to Ortofon quad coils with split pole pins and uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
- Output voltage at 1 kHz, 5cm/sec: 4 mV
- Frequency response 20 Hz - 20 kHz: 3 / - 1 dB
- Tracking ability at 315 Hz: 70 µm
- Compliance, dynamic, lateral: 18 µm/mN
- Cantilever material: Aluminium
- Stylus type: Spherical diamond
- Stylus tip radius: R 65 µm
- Tracking force range: 1.6-2.0g (16-20 mN)
- Tracking force, recommended: 1.8 g (18 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 700 Ohm
- Cartridge colour: Black/Grey
- Recommended load resistance: 47 kOhm
- Internal inductance: 350 mH
- Stylus colour: Grey
- Recommended load capacitance: 150-300 pF
- Replacement stylus: Stylus 2M 78
Ortofon-branded products are warranted against defects in materials and workmanship for a period of 2 years from the date of original retail purchase when used in accordance with Ortofon’s user manuals. If a defect arises during the warranty period, Ortofon, at its option will (1) repair the product at no charge or (2) exchange the product with one of equivalent functionality or one that is at least functionally equivalent to the product it replaces. This warranty excludes damage resulting from abuse, accident, modifications, unauthorized repairs, improper installation, or other causes that are not defects in materials and workmanship as well as normal depletion of consumable parts such as styli unless failure has occurred due to a defect in materials or workmanship.
